Waterproof E-Scooter Connector

CRETOP is a professional Waterproof E-Scooter Connector manufacturer and supplier from China.There may be a lot of connector manufacturers out there, but not all of them are alike. Our professional expertise in manufacturing E-Motorcycle Charging and Discharging Connector has been honed over the past 10+ years. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.

Send Inquiry

Product Description

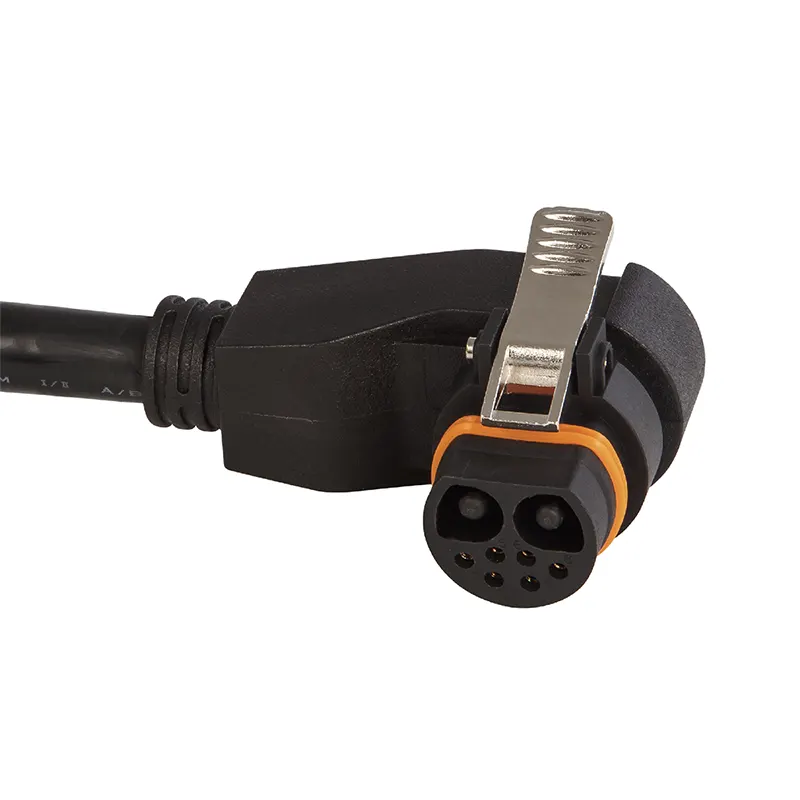

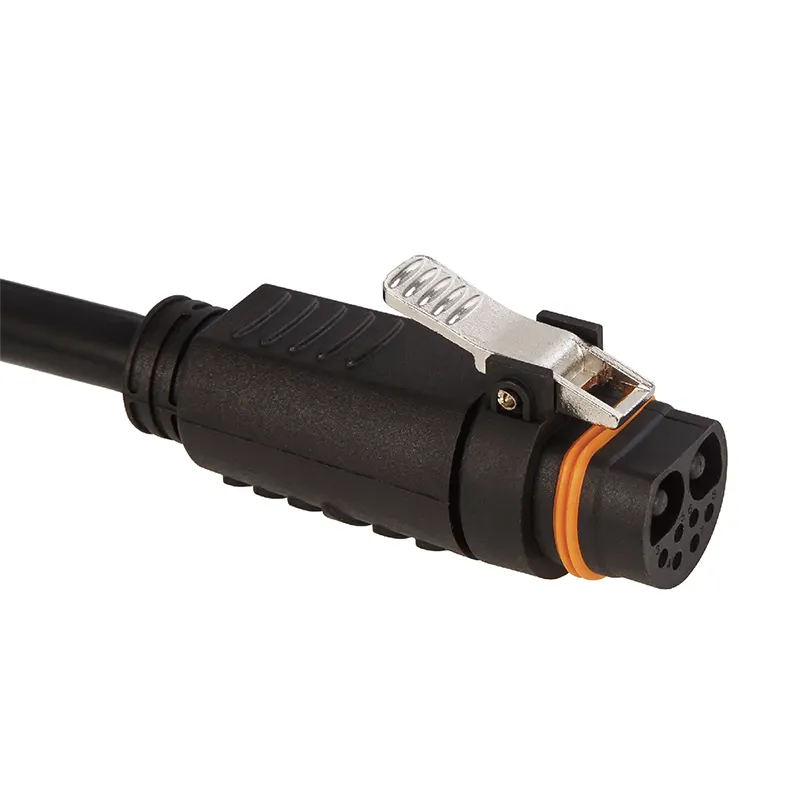

Waterproof E-Scooter Connector is offered by China manufacturer CRETOP. Buy Waterproof E-Scooter Connector which is of high quality directly with low price. CRETOP Waterproof E-Scooter Connector use CRETOP PUSH LOCK locking mechanism, can be locked securely, with audible click when locking engaged. At the same time, with small shape, Waterproof E-Scooter Connector can fully reduce the bending space. We use strengthen signal pin in this Waterproof E-Scooter Connector, which has strong inserting resistance and bending resistance. Our Waterproof E-Scooter Connector has UL, CE, TUV, RoHS certificate.

Waterproof E-Scooter Connector Specifications

Mating Cycle	≥10000 Times
Mating Force/Unmating Force	>35N
Wire processing	Weld/Ctrimping
Rating Voltage	72V
Rating Current	50A (Ø3.6mm)5A(Ø1.5mm)
Withstand Voltage	1000V AC
Insulation Resistance	>20MΩ,500V DC
Operating Temperature	-45°C~105°C
IP Rating	IP67 Mated
Salt Spray	48h
Flammability Rating	UL94V-0
Shell	High strength thermoplastic resin
Sealing	Silicone Rubber
