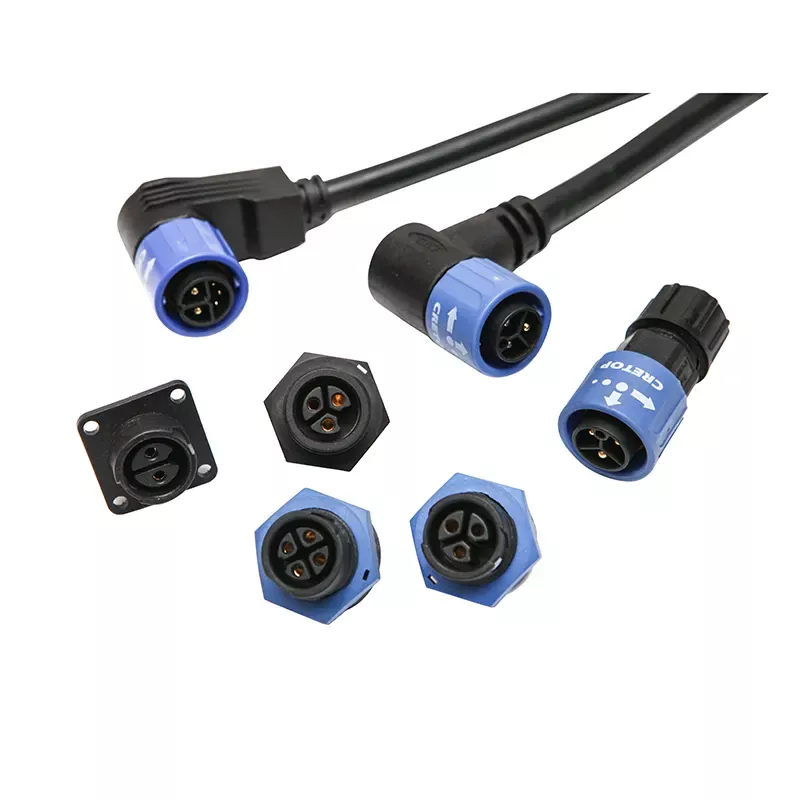

2+3Pin E-Scooter Connector

CRETOP is a leading manufacturer and exporter of 2+3Pin E-Scooter Connector, established in 13 years and has more than 30 product categories. All E2W connectors is made of the best materials; quality is strictly controlled one by one before delivery, and a comprehensive quality control system is established according to ISO 9001. Our export markets include Southeast Asia, North America, Europe, ect.

Send Inquiry

Product Description

CRETOP 2+3Pin E-Scooter Connector has a large scale in China. CRETOP 2+3Pin E-Scooter Connector is power & signal wires combination. This 2+3Pin E-Scooter Connector use CRETOP PUSH LOCK locking mechanism, can be locked securely, with audible click when locking engaged.

Insertion in place with “click” tone. Besides, with small shape, CRETOP 2+3Pin E-Scooter Connector can fully reduce the bending space. Our CRETOP 2+3Pin E-Scooter Connector has UL, CE, SGS, RoHS certificates. You can rest assured to buy customized 2+3Pin E-Scooter Connector

from CRETOP. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

2+3Pin E-Scooter Connector Specifications

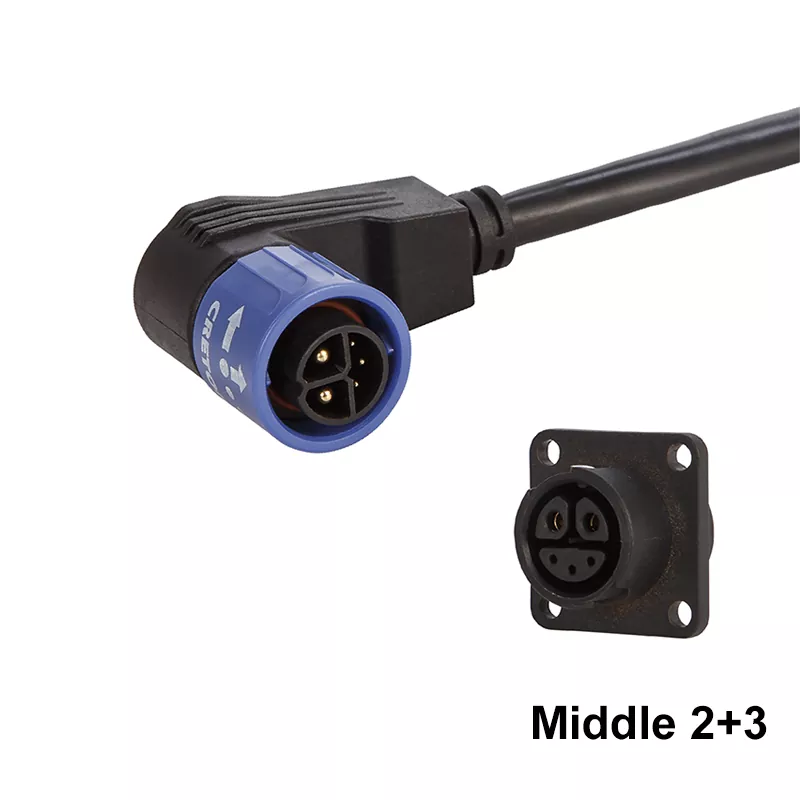

Model No.	Middle 2+3
Mating Cycle	≥2000 Times
Pullout Force	<100N
Wire processing	Weld
Rating Voltage	250V DC
Rating Current	20A
Withstand Voltage	1500V AC
Insulation Resistance	>100MΩ
Operating Temperature	-40°C~105°C
IP Rating	IP67 Mated
Salt Spray	48h
Flammability Rating	UL94V-0
Shell	High strength thermoplastic resin
Sealing	Silicone Rubber
Conductor	Copper Alloy, Gold Plated
Wire Gauge	Max 14AWG/2.0mm²
