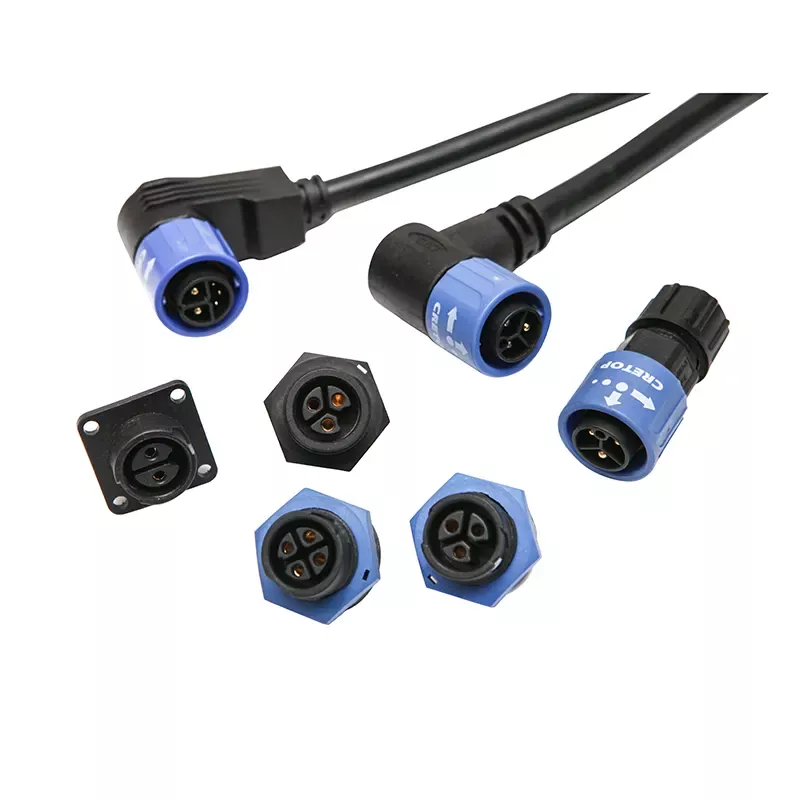

3Pin E-Scooter Connector

CRETOP is a professional 3Pin E-Scooter Connector manufacturer and supplier from China.There may be a lot of connector manufacturers out there, but not all of them are alike. Our professional expertise in manufacturing E-Motorcycle Charging and Discharging Connector has been honed over the past 10+ years. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.

Send Inquiry

Product Description

3Pin E-Scooter Connector is offered by China manufacturer CRETOP. Buy 3Pin E-Scooter Connector which is of high quality directly with low price. CRETOP 3Pin E-Scooter Connector use CRETOP PUSH LOCK locking mechanism, can be locked securely, with audible click when locking engaged. At the same time, with small shape, 3Pin E-Scooter Connector can fully reduce the bending space. We use strengthen signal pin in this 3Pin E-Scooter Connector, which has strong inserting resistance and bending resistance. Our 3Pin E-Scooter Connector has UL, CE, TUV, RoHS certificate.

3Pin E-Scooter Connector Specifications

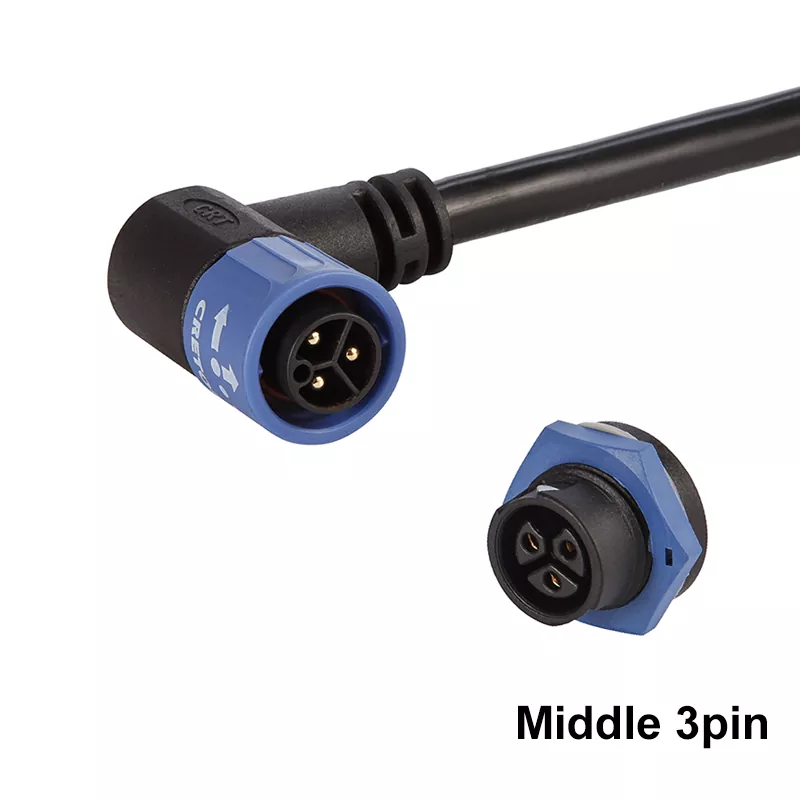

Model No.	Middle 3Pin
Mating Cycle	≥2000 Times
Pullout Force	<100N
Wire processing	Weld
Voltage Rating	250V DC
Current Rating	20A
Withstand Voltage	1500V AC
Insulation Resistance	>100MΩ
Operating Temperature	-40°C~105°C
IP Rating	IP67
Salt Spray	48h
Flammability Rating	UL94V-0
Shell	High strength thermoplastic resin
Sealing	Silicone Rubber
Conductor	Copper Alloy, Gold Plated
Cable	Max 14AWG/2.0mm2
