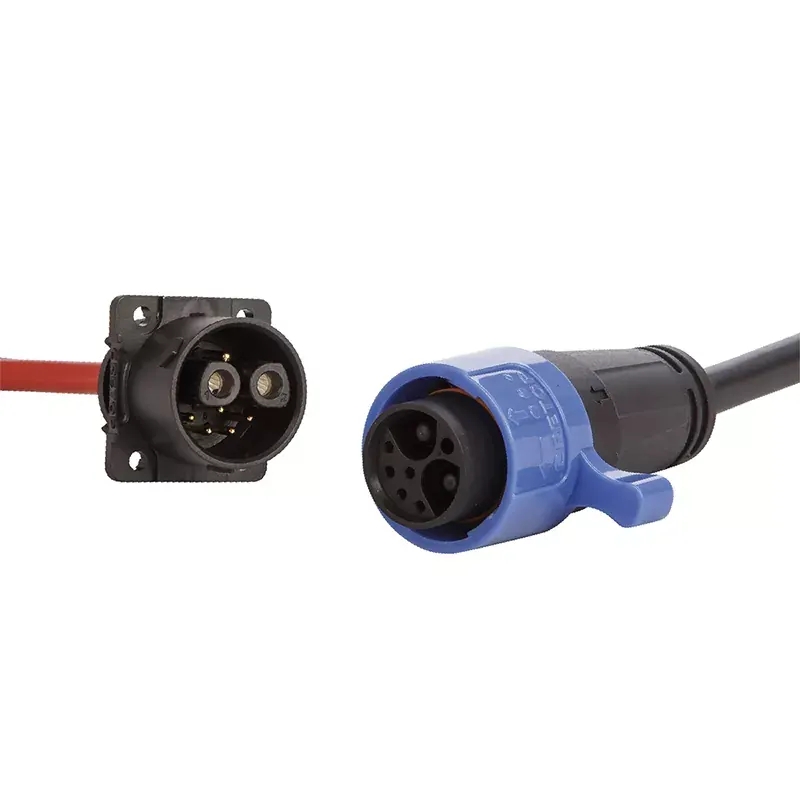

2+1+5Pin E-Motorcycle Battery Connector
Wholesale 2+1+5Pin E-Motorcycle Battery Connector made in China with brands from CRETOP®. China 2+1+5Pin E-Motorcycle Battery Connector factory with ISO9001 certificate, national high-tech enterprise. We have been specialized in 2+1+5Pin E-Motorcycle Battery Connector for many years. Our products cover most of Asia, European, America markets. We regularly develop new products to meet customer needs, to provide customers with the latest, most comprehensive and most reliable E-Motorcycle Connector.
Send Inquiry
Product Description
The CRETOP® 2+1+5Pin E-Motorcycle Battery Connector is the latest invention of high-quality UL TUV CQC CE IP67 and comes with a 3-5 year warranty in China. High quality that can be used normally in harsh environments. The CRETOP® 2+1+5Pin E-Motorcycle Battery Connector has three points push-lock locking mechanism, can plug in & out easy and smoothly. At the same time, the 2+1+5Pin E-Motorcycle Battery Connector’s locking nut is with hand grip, can be easy accessed. You can also choose different locking rings. Anti touch technology makes the connector use more safe. CRETOP® 2+1+5Pin E-Motorcycle Battery Connector is compact, fully reduce the bending space.
Straight head E-Motorcycle Connector Specifications
|
Model No. |
Mate60 2+1+5 |
|
Mating Cycle |
≥3000 Times |
|
Pullout Force |
<100N |
|
Wire processing |
Crimping |
|
Rating Voltage |
80V DC |
|
Rating Current |
50A |
|
Peak Current |
Power 80A 60S |
|
Withstand Voltage |
1500V AC |
|
Insulation Resistance |
>100MΩ |
|
Operating Temperature |
-40°C~105°C |
|
IP Rating |
IP67 Mated & Unmated |
|
Salt Spray |
48h |
|
Flammability Rating |
UL94V-0 |
|
Shell |
High strength thermoplastic resin |
|
Sealing |
Silicone Rubber |
|
Conductor |
Copper Alloy, Sliver/Gold Plated |
