2+8Pin E-Scooter Battery Connector
As a professional 2+8Pin E-Scooter Battery Connector manufacturer, CRETOP® can provide connectors in a wide variety of harsh-industrial and outdoor applications in the areas of Electric Bike, Electric Motorcycle, Industrial Automation, Marine Electronics, Renewable Energy, New Energy Vehicles, Engineering Machinery, and other emerging industries. So far, we have provided 2+8Pin E-Scooter Battery Connector customization services for many cooperative customers with special needs.
Send Inquiry
Product Description

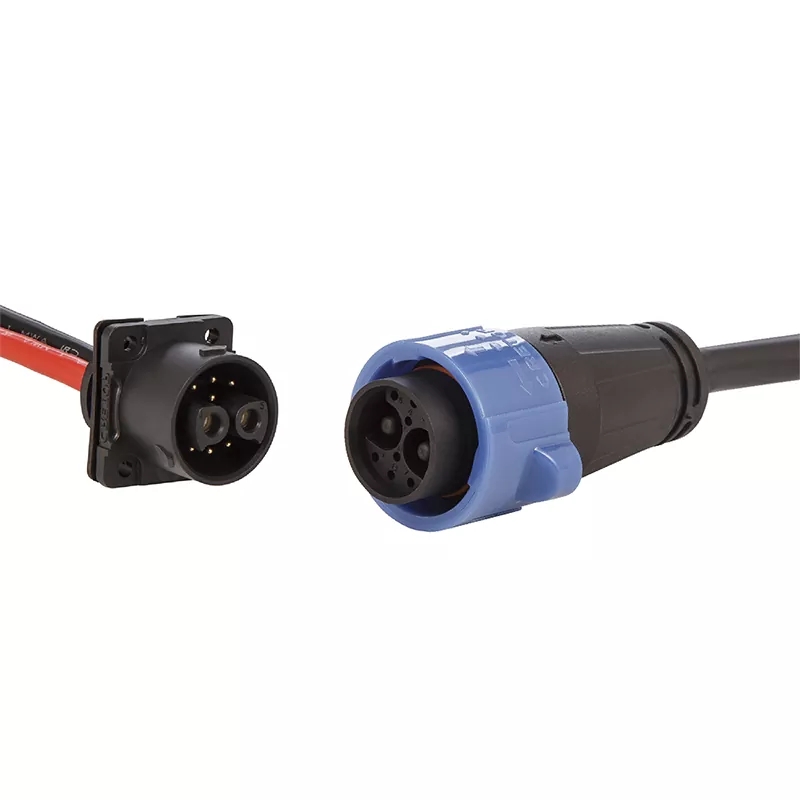

CRETOP® manufacture 2+8Pin E-Scooter Battery Connector many years in China. 2+8Pin E-Scooter Battery Connector use three points push-lock locking mechanism, you can plug in & out easy and smoothly. Meanwhile, the 2+8Pin E-Scooter Battery Connector’s locking nut is with hand grip, can be easy accessed. You can also choose different locking rings. Anti touch technology makes the connector use more safe. CRETOP® 2+8Pin E-Scooter Battery Connector is compact, fully reduce the bending space. CRETOP® use the latest inspection and quality control techniques to ensure that all our connectors meet our customers’ exact specifications.
2+8Pin E-Motorcycle Connector Specifications
|
Model No. |

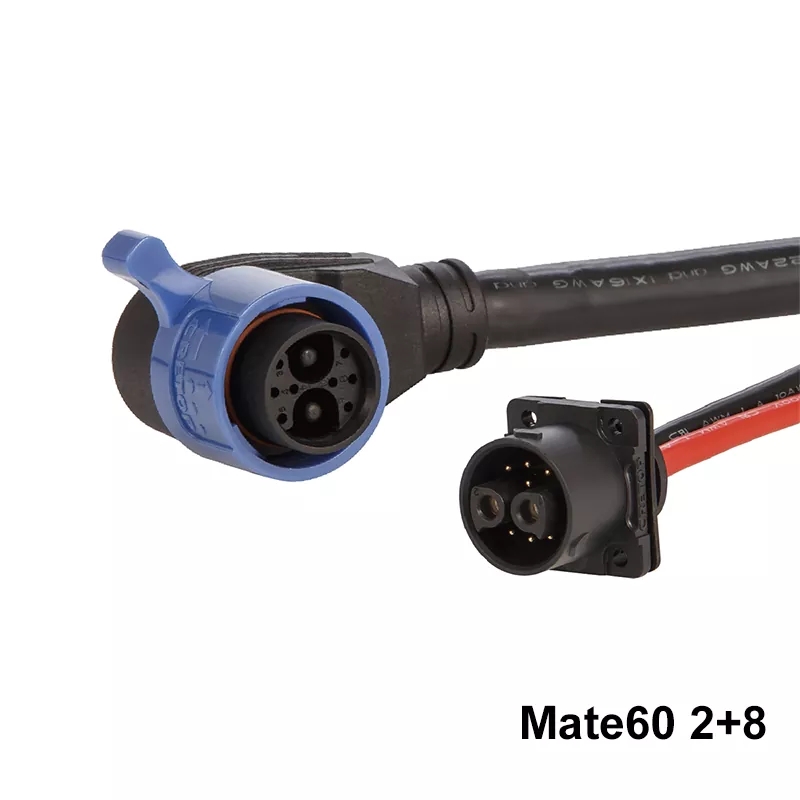

Mate60 2+8 |
|
Mating Cycle |
≥3000 Times |
|
Pullout Force |
<100N |
|
Wire processing |
Crimping |
|
Rating Voltage |
80V DC |
|
Rating Current |
50A |
|
Peak Current |
Power 80A 60S |
|
Withstand Voltage |
1500V AC |
|
Insulation Resistance |
>100MΩ |
|
Operating Temperature |
-40°C~105°C |
|
IP Rating |
IP67 Mated & Unmated |
|
Salt Spray |
48h |
|
Flammability Rating |
UL94V-0 |
|
Shell |
High strength thermoplastic resin |
|
Sealing |
Silicone Rubber |
|
Conductor |
Copper Alloy, Sliver/Gold Plated |
