Lightning E-Bike Connector

CRETOP is a Lightning E-Bike Connector manufacturer and supplier. We have been focusing on the production and sales of Lightning E-Bike Connector for many years. We can provide you with cost-effective products and services. Our connectors are sold in large quantities to European and American markets. We look forward to being your long-term suppliers.

Send Inquiry

Product Description

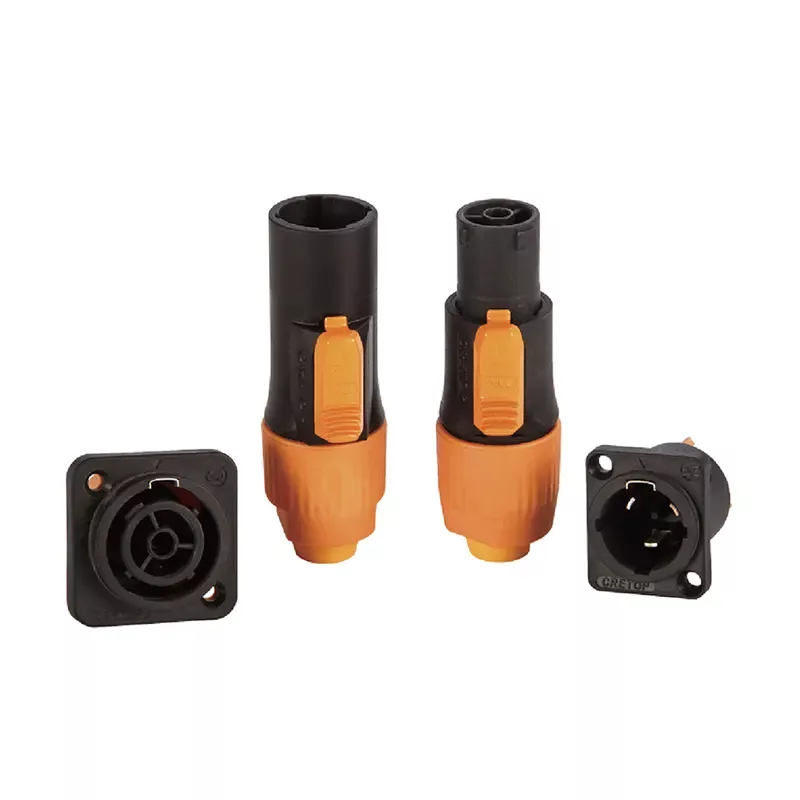

CRETOP Lightning E-Bike Connector Made in China, which can provide electric connection of charging for E-Bikes. Lightning E-Bike Connector has Fast & easy twist locking system, anti touch technology makes it more safer. Easy operation with ergonomic latch design. When you lock engaged, you can hear audible click. The lifespan of Lightning E-Bike Connector is 5 years. If you are looking for a reliable Lightning E-Bike Connector manufacturer, please contact us, it will give you and me a pleasant start of cooperation!

Lightning E-Bike Connector Specifications

Model No.	CAC3
Mating Cycle	≥3000 Times
Pullout Force	<100N
Wire processing	Weld
Rating Voltage	250V DC
Rating Current	20A
Peak Current	30A 60S
Withstand Voltage	2500V AC
Insulation Resistance	>100MΩ
Operating Temperature	-40°C~105°C
IP Rating	IP67 Mated
Salt Spray	48h
Flammability Rating	UL94V-0
Shell	High strength thermoplastic resin
Sealing	Silicone Rubber
Conductor	Copper Alloy, Silver Plated
