E-Bike Charging Connector

CRETOP is a E-Bike Charging Connector manufacturer, providing customers with various waterproof connectors for outdoor use, E2W, and industrial automation. As a professional E-Bike Charging Connector manufacturer, CRETOP provides one-stop solutions like plug, socket, terminal, with or without wire. So far, we have provided connector customization services for many cooperative customers with special needs.

Send Inquiry

Product Description

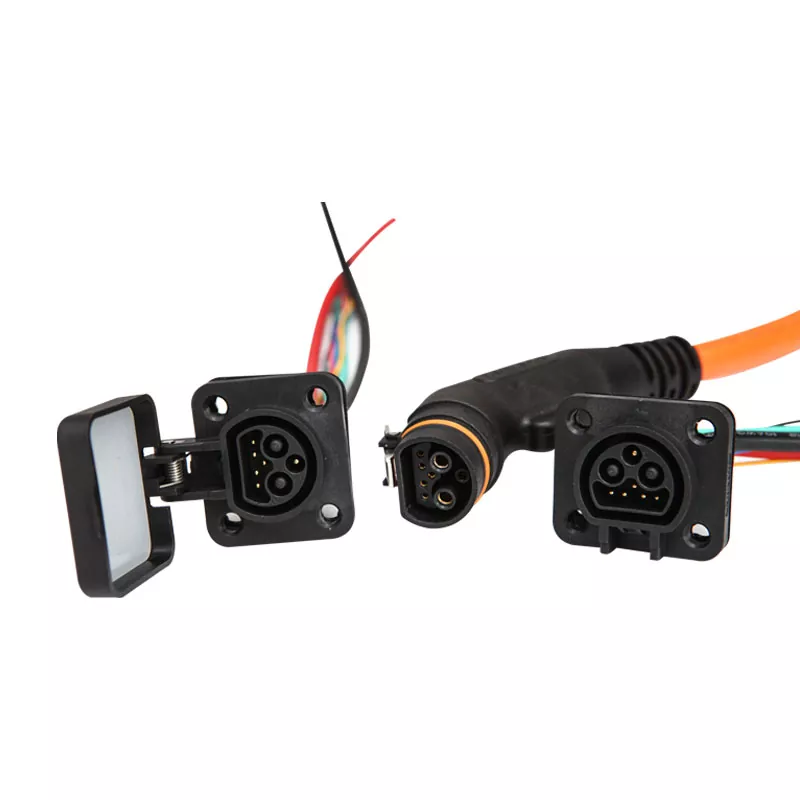

CRETOP is a E-Bike Charging Connector manufacturer and supplier specializing in connector field for many years. E-Bike Charging Connector can provide charging and discharging electric connection for E-motorcycles. E-Bike Charging Connector comes with buckle tightening structure, can be push-pull straightly. Meanwhile, the buckle is with self-locking button. You can choose 0-6 pin signal. When locking engaged, there will be audible click. E-Bike Charging Connector is compact, fully reduce the bending space.

We maintain long-term and stable cooperative relations with many customers from all over the world, who are the experiencers and supporters of our products and services, and we look forward to one day you will become one of them.

E-Bike Charging Connector Specification

Model No.	Banga30 2+1+5
Mating Cycle	≥3000 Times
Pullout Force	<100N
Wire processing	Crimping/Weld
Rating Voltage	250V DC
Rating Current	50A
Peak Current	Power 80A 60S
Withstand Voltage	1500V AC
Insulation Resistance	>100MΩ
Operating Temperature	-45°C~105°C
IP Rating	IP66MatedIP67Unmated
Salt Spray	48h
Flammability Rating	UL94V-0
Shell	High strength thermoplastic resin
Sealing	Silicone Rubber
Conductor	Copper Alloy, Sliver/Gold Plated
