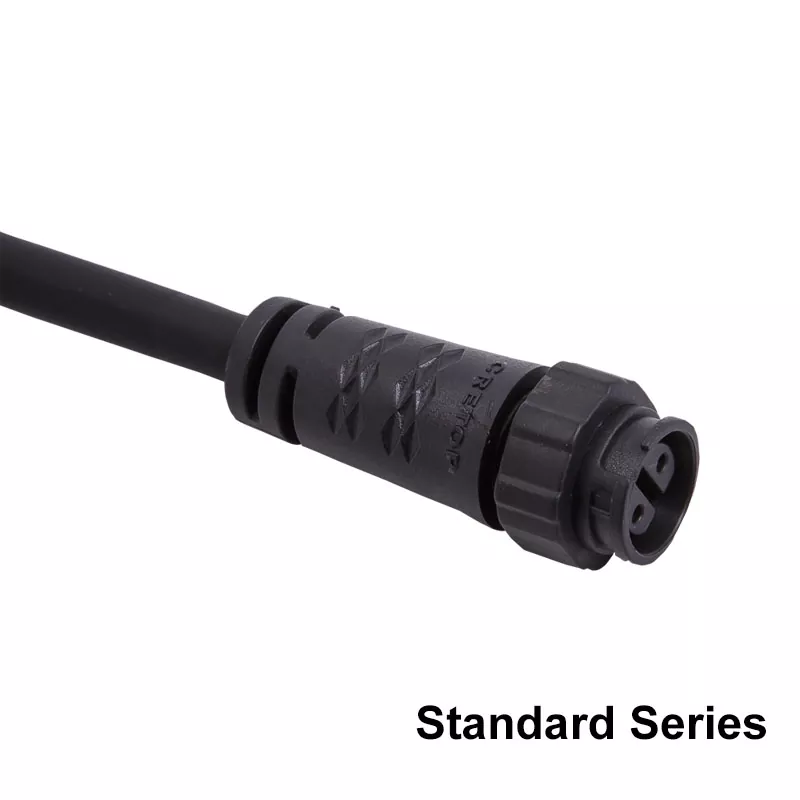

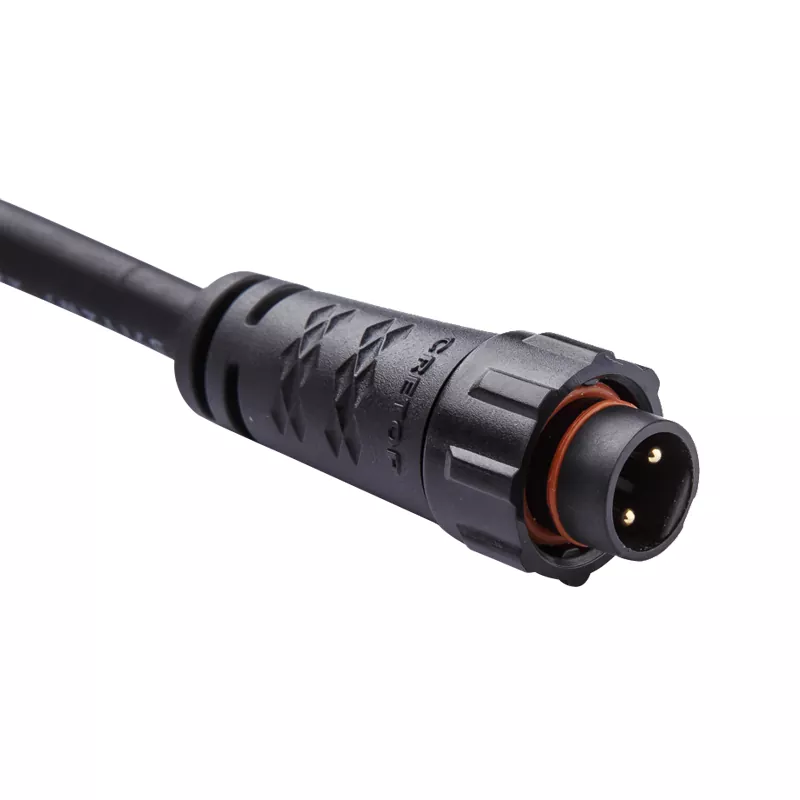

Waterproof Smart Electric Meter Connector

CRETOP as a professional Waterproof Smart Electric Meter Connector manufacturer, you can rest assured to buy Waterproof Smart Electric Meter Connector from our factory and we will offer you the best after-sale service and timely delivery. All our connectors are RoHS compliant. We also offer options to meet any special requests, please kindly contact our sales representative if you have any questions.

Send Inquiry

Product Description

Factory of Waterproof Smart Electric Meter Connector Made in China with low price. The

Waterproof Smart Electric Meter Connector can provide signal connection for smart water meter/smart meter. This connector has threaded compression structure, wing lock ring.

You can prefabricated assemble the connector. Long lifespan and 3-5 years warranty.

Poka-yoke design makes you easily to assemble it. Besides, this Waterproof Smart Electric Meter Connector is anti UV, you can use it at harsh environments.

Waterproof Smart Electric Meter Connector Specifications

Model No.	Mini 4Pin
Mating Cycle	≥200 Times
Pullout Force	<30N
Wire processing	Crimping
Rating Voltage	60V DC
Withstand Voltage	500V AC
Insulation Resistance	20MΩ
Operating Temperature	-40°C~105°C
IP Rating	IP68
Salt Spray	96h
Flammability Rating	UL94V-0
Shell	High strength thermoplastic resin
Sealing	Silicone Rubber
Conductor	Copper Alloy, Gold Plated
Cable	22AWG
