Why is Elbow E-Motorcycle Connector Designed to be an Elbow?

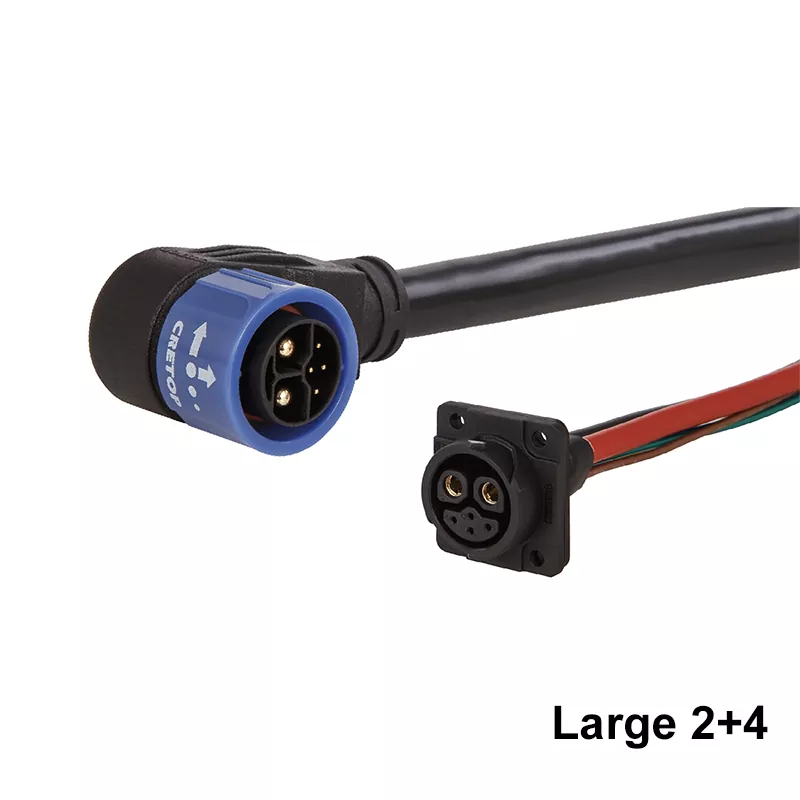

The elbow E-motorcycle connector is a key cable connection component of high-voltage electric drive systems. Its core features are a rigid housing with a specific angle, internal high-voltage conductive terminals and an integrated sealing structure.  This design directly serves the unique space constraints and physical protection requirements of electric motorcycles.

The chassis layout of electric motorcycle is highly compact, and the battery compartment, motor and controller are distributed in three dimensions.  The elbow structure of the elbow E-motorcycle connector allows the connector body to fit the curved surface of the frame, avoiding the linear mating space required for the in-line connector.  The preset bending angle accurately matches the natural trend of the harness, eliminates the stress fatigue of the insulation layer caused by forced bending of the cable, and compresses the radius of the harness.

Elbow structure changes the vibration transmission path through geometric shape, and converts longitudinal vibration into shell micro-deformation absorption.  The fixed point between the elbow E-motorcycle connector and the frame is located at the bending vertex, forming a mechanical lever effect attenuation amplitude, reducing the fretting wear probability of the terminal contact surface.

When elbow E-motorcycle connector is inserted, the silicone seal ring at the bending position bears axial compression rather than radial shear force to improve the interface fit.  When rainwater flows along the frame, the downward outlet end of the elbow forms a gravity drainage channel to avoid stagnant water at the interface.  The bending angle of the shell also increases the geometric complexity of the liquid permeation path.
