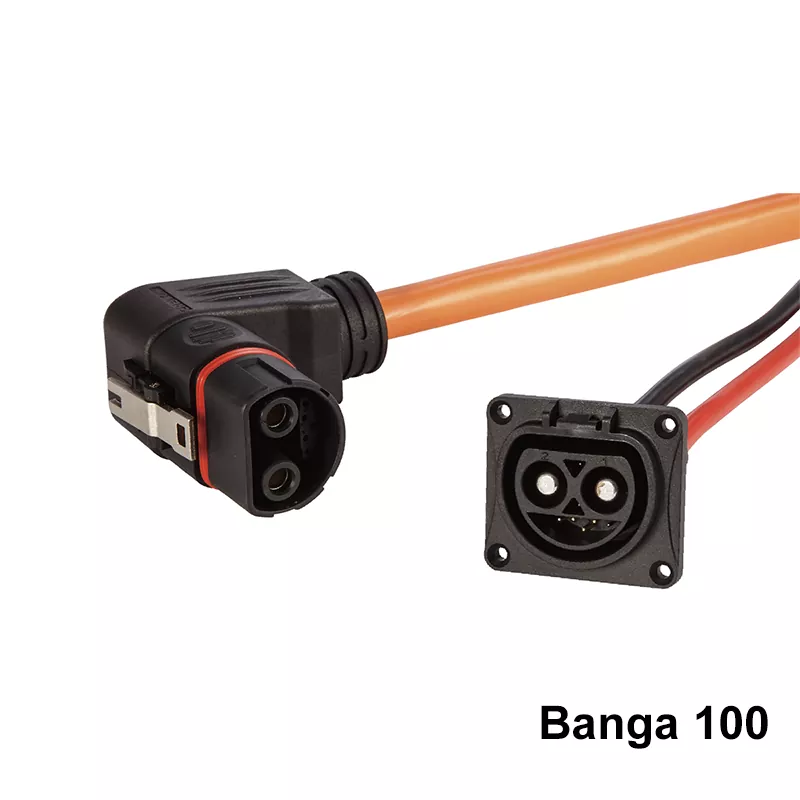

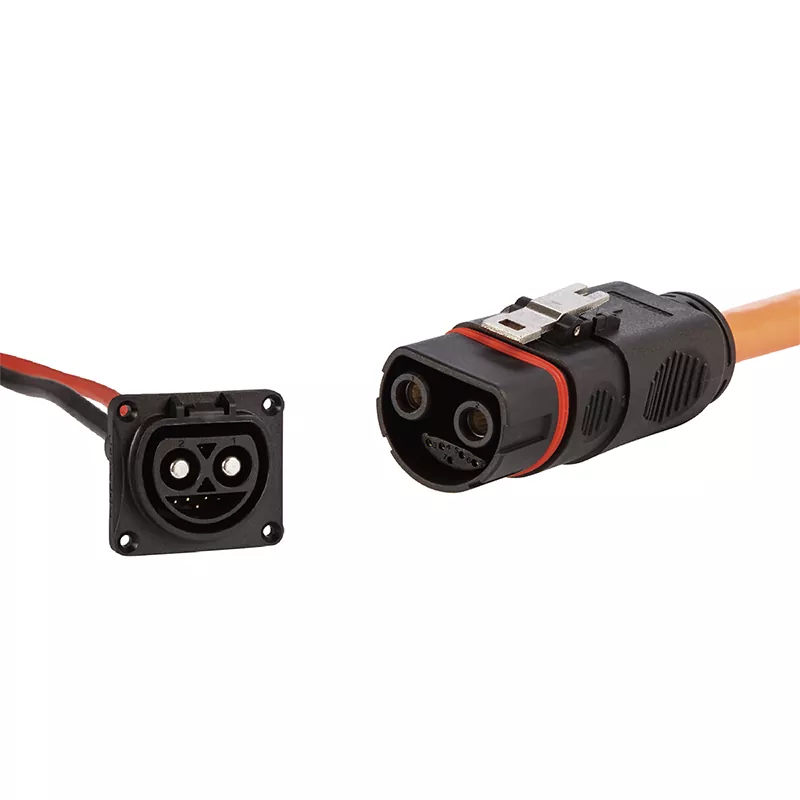

The CRETOP brand of High Current E-Motorcycle Connector factory is a famous brand of High Current E-Motorcycle Connector in china. As a top Chinese connector manufacturer, high-quality High Current E-Motorcycle Connector are the best way to show the strength of china's connector factory. And this E-Motorcycle Connector, which is composed with snap joint locking mechanism, can provide electric connection of charging and discharging for E-motorcycles. Its Self-locking button is in order to prevent accidental unlocking. You can choose signal wires 0~6 depend on your requirements. The compact shape can fully reduced bending space. When you lock engaged, you can hear audible click. If you are interested in CRETOP High Current E-Motorcycle Connector, welcome to contact us, we look forward to cooperating with you.
Model No. |
Banga 100 |
Mating Cycle |
≥3000 Times |
Pullout Force |
<100N |
Wire processing |
Crimping / Weld |
Rating Voltage |
630V DC |
Rating Current |
100A |
Peak Current |
Power 180A60S |
Withstand Voltage |
2500V AC |
Insulation Resistance |
>100MΩ |
Operating Temperature |
-45°C~105°C |
IP Rating |
IP66 mated; IP67unmated |
Salt Spray |
48h |
Flammability Rating |
UL94V-0 |
Shell |
High strength thermoplastic resin |
Sealing |
Silicone Rubber |
Conductor |
Copper Alloy, Sliver/Gold Plated |
