3+6Pin Motor Connector

CRETOP is a leading manufacturer, supplier and exporter of 3+6Pin Motor Connector in China. We can provide product design optimization, high performance and competitive prices. Of course, also indispensable is our perfect after-sales service. If you are interested in our Motor Connector, you can consult us now, we will reply to you in time.

Send Inquiry

Product Description

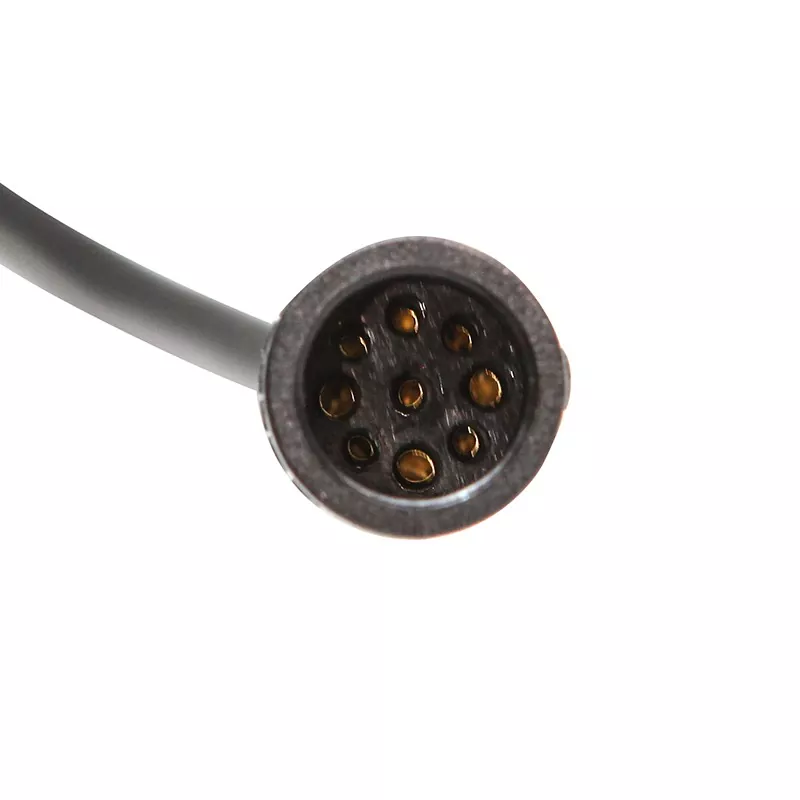

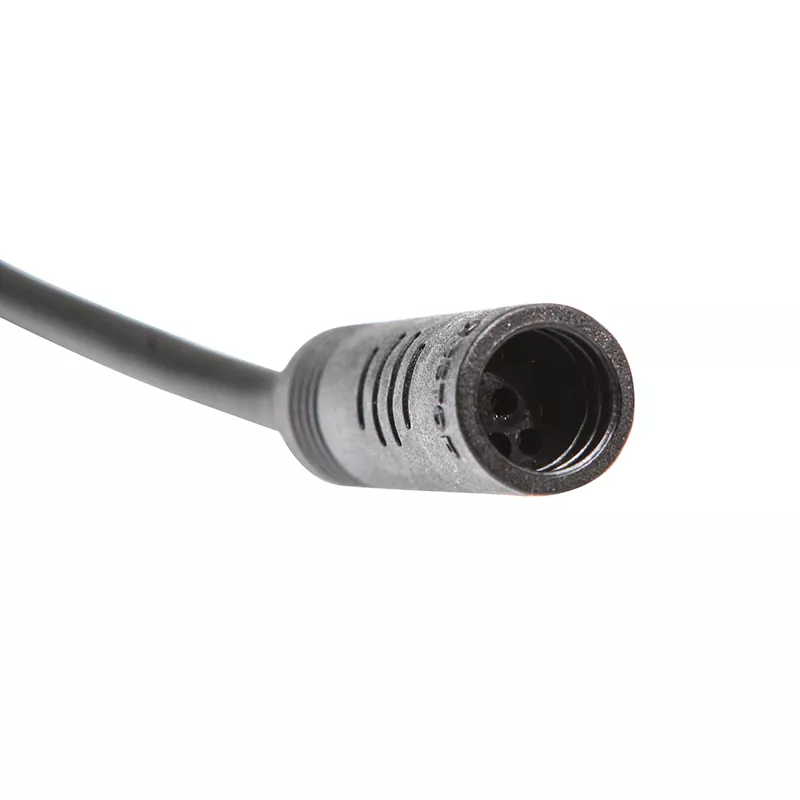

3+6Pin Motor Connector manufactured by CRETOP based in China, which can provide charging electric connection for E-bikes. This CRETOP connector can plug in & out quickly, easy operation.

3+6Pin Motor Connector is motor three-phase wires & signal wires combination. You can plug with protective cover, much more safer. All the materials match RoHS standard.

3+6Pin Motor Connector Specifications

Model No.	Dream Series 3+6Pin
Mating Cycle	≥200 Times
Pullout Force	<90N
Wire processing	Weld
Rating Voltage	48V AC
Rating Current	15A
Peak Current	power18A 30S
Withstand Voltage	700V AC
Insulation Resistance	>20MΩ
Operating Temperature	-25°C~80°C
IP Rating	IP66 Mated
Salt Spray	48h
Flammability Rating	UL94V-0
Shell	Nylon
Conductor	Copper Alloy, Gold Plated
Wire Gauge	Max316AWG/1.5mm² +6 26AWG/0.14mm²

Hot Tags: 3+6Pin Motor Connector, China, Made in china, Manufacturers, Suppliers, Factory, Wholesale, Customized, Brands, Quality, Low Price
